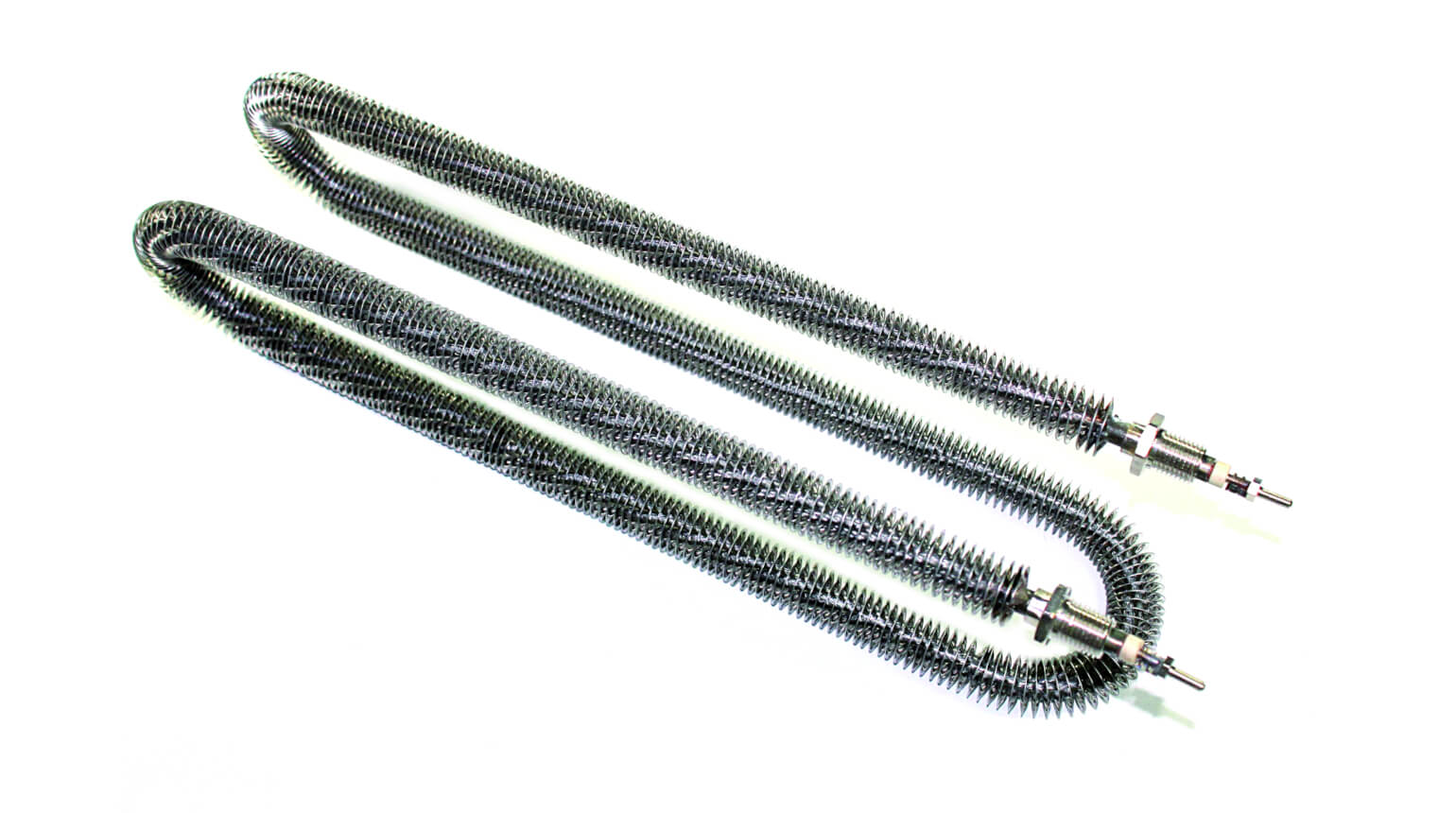

Finned Tubular Heating Elements
Finned Tubular Heating Elements
Finned Tubular Heating Elements
You could reveiew the following documents or contact us to learn more about our product.
Technical Data Table
Insulation | MgO |
Class | I |
Outer Diameter | 8,5 mm / 11 mm |
Grounding Connection | Optional |
Supply Voltage | 110 V / 220 V / 380 V / 440 V |
Güç | 6,5 kW'a kadar |
Max. Specific Charge | 8,0 W/cm² 'ye kadar |
Heating Element's Tube Material |
|
Threaded Plug | 1”, 1 ¼”,1 ½”, 2” - 2 ½” (Brass / Stainless Steel) |
Flange | Optional |
Protective Case | Optional |
Thermostat Case | Optional |
Tests | IEC 60335-1 |
Documents
SEDES Std. Product Catalog
Sedes Finned Tubular Heating Elements
Heating Elements Power Calculation Formulas
